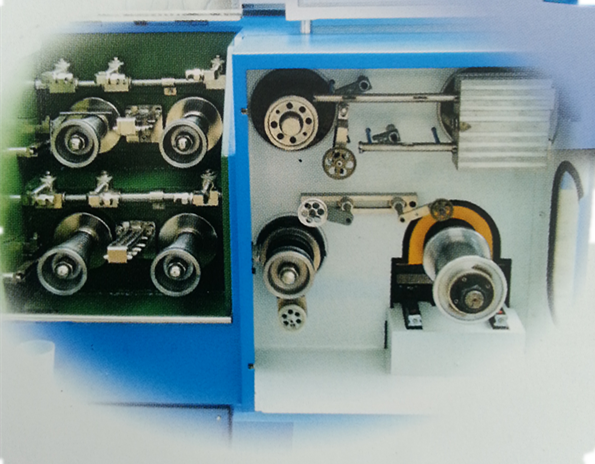

| 設備型號Machine type | LY-100-24D |
| 動力控製方式Power contral | LCD人機界麵控製係統LCD man-machine interface control |
| 進線範圍Inlet dia (mm) | Ø0.055-Ø0.12 |
| 出線範圍Outlet dia (mm) | Ø0.022-Ø0.04 |
| 最高線速Drawing speed (max)(m/min) | 1500 |
| 最多眼模數Max die no | 24 |
| 機械減麵率Slip ratio of m/c (%) | 8 |
| 定速輪減麵率Fix speed slip ratio of m/c (%) | 7 |
| 伸線輪Capstan | 采用噴瓷伸線輪Ceramic plasma capstan |
| 伸線輪直徑Capstan dia (mm) | Ø100 |
| 定速輪直徑Speed capstan dia (mm) | Ø100 |
| 卷取軸尺寸Spoll bobbin size(mm) | Ø200×Ø180×216 |
| 上下軸方式Bobbin loading&unloading type | 頂心螺杆緊迫式 Shaft type |
| 伸線動力Main motor power(kw) | 4 |
| 卷取動力Spooler motor(kw) | 1.1 |
| 修正係統Revise system | 雙變頻無張力杆控製 Dual-frequency tension-free |
| 排線方式Line arrangement method | 步進電機+滾珠絲杆傳動Stepping motor silk rod drive |
| 傳動方式Transmission type | 平皮帶Falt belt |
| 拉絲潤滑方式Lubrication type | 扇形噴淋式潤滑Sector-sprayed type |
| 使用是電壓Power source | 380V ,50/61HZ |
| 外型尺寸Overall dimensions(m) | 2.05×1.6×1.9 |
